Meet Marie™
Here you can find out more about Marie™ our innovative particle therapy compatible solution. Marie™ includes a unique upright patient positioning system and CT scanner so simulation and treatment can happen in one place. There are a number of benefits to treating patients in the upright orientation, you can find out more about these here.
Leo Cancer Care has removed the need for a large rotating gantry by introducing slow patient rotation in the upright orientation in order to accurately deliver radiation therapy to a cancerous tumour. This innovation means that radiation therapy treatment rooms of the future will be a lot smaller due to the reduction of materials and footprint of the Leo Cancer Care technology.
Marie™ is compatible with any fixed particle beam generation system and nozzle.
PRODUCT FEATURES
Dual-energy diagnostic quality CT at the treatment isocenter will enable real-time adaptive therapy
Stationary fixed beam delivery system improves reliability, beam parameters and accuracy whilst reducing maintenance costs

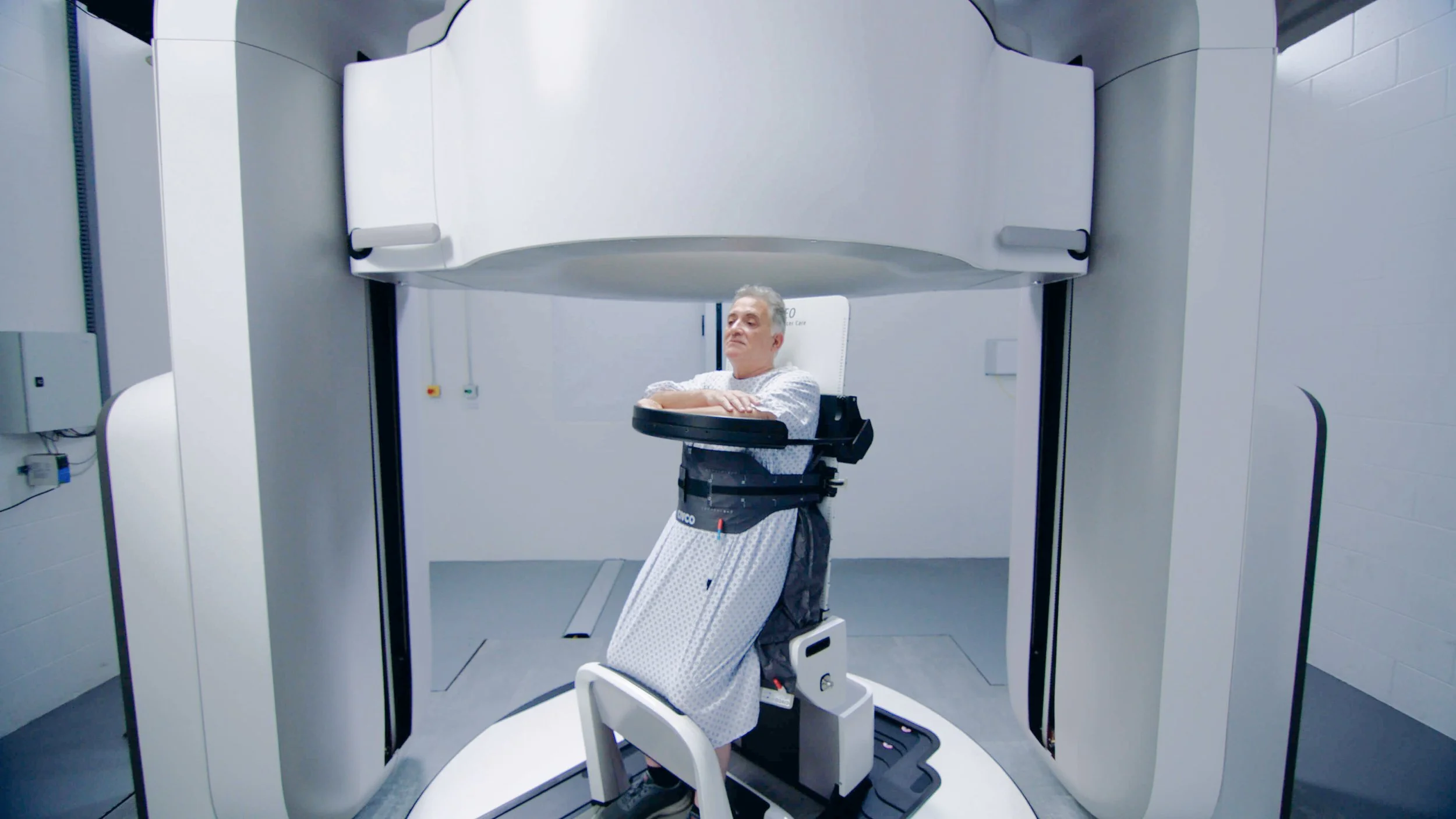

Sophisticated patient positioning system, allowing for imaging and treating of all particle therapy-specific anatomical sites in the upright position
*Please note that this product is not yet commercially available for sale pending 510k and CE mark clearance.
SPECIFICATIONS
UPRIGHT PATIENT POSITIONING SYSTEM
Isocenter Accuracy: <1mm
X Translation: ±13.5 cm Travel
Y Translation: +15 cm/-35cm Travel
Z Translation: 70cm Travel
Pitch & Roll: ±3 Degrees
Backrest Angle: ±15 Degrees
Rotation: Continuous 360 Degrees
CT SCANNER
Bore Size: 84cm
Field of View: 62.3cm
Imaging Energies: 80kV & 140kV
Gantry Tilt Angle: ±15 Degrees
Travel Range: 160cm
Slice Thickness: 1, 2, 4 mm
Learn more about Marie™
Download the Marie™ Brochure
If we have sparked your curiosity and you would like to find out more about our upright particle therapy solution, Marie™, please feel free to review our product brochure for more information.
You can find out more about the benefits of upright radiation therapy as well as more specific details about the product which we hope you find interesting and insightful.
watch the Marie™ Product video
We have created a Marie™ product video that will help you to discover even more about the functionalities of Leo Cancer Care’s upright particle therapy solution.
The video is voiced over by our very own CEO, Stephen Towe, who has been involved in the development of Marie™ from the company’s beginnings in Australia. You can find out more about Leo Cancer Care and our Senior Leadership team here.
Interested in finding out how simple it is to install a Marie™ system?
We understand that many institutions are unable to offer particle therapy to their patients due to the high costs of the technology and all the complications that come with the space and construction requirements of these solutions.
That is why we have developed a compact solution that is much simpler to install and also more affordable. Why not read our site planning overview and discover how much simpler for yourself.
